Model: PD765-6X5-10
Product Type: 1/8 DIN Process & Temperature Digital Panel Meter
Input: Current (4-20 mA), Voltage (0-10 V), Thermocouple, RTD
Output Options: 2 Relays & 4-20 mA Output
Power: 85-265 VAC, 90-265 VDC
Approvals: CE, UL/C-UL
Transmitter Power: 24 VDC @ 200 mA
Display Category: LED, Single Line, Sunlight Readable, Large Display
Display: 1.2″ High, 4 Digits, Red LED
Warranty: 3 years
Product Series: Trident
Product Family: PD765
Product category: Digital Panel Meters
Product Application: Level, Pressure, Temperature, Process, Pump Control
Product Type: 1/8 DIN Process & Temperature Digital Panel Meter
Input: Current (4-20 mA), Voltage (0-10 V), Thermocouple, RTD
Output Options: 2 Relays & 4-20 mA Output
Power: 85-265 VAC, 90-265 VDC
Approvals: CE, UL/C-UL
Transmitter Power: 24 VDC @ 200 mA
Display Category: LED, Single Line, Sunlight Readable, Large Display
Display: 1.2″ High, 4 Digits, Red LED
Warranty: 3 years
Product Series: Trident
Product Family: PD765
Product category: Digital Panel Meters
Product Application: Level, Pressure, Temperature, Process, Pump Control

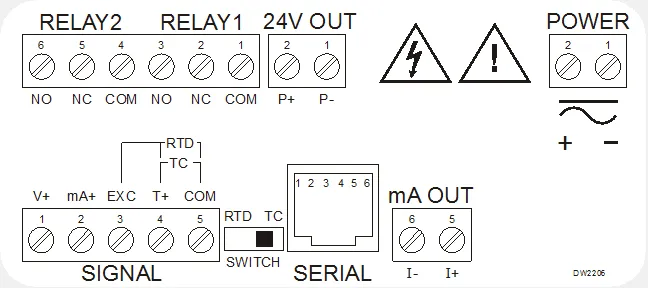

Wiring Diagram:
