Model: PD6830-AP0-0
Product Type: Flow Rate / Totalizer
Input: Pulse
Output Options: (2) Open Collectors
Power: 9-30 VDC
Approvals: ATEX (FP), CE, CSA (XP), FM (XP), IEC (FP)
Display Category: LCD, Dual Line, Sunlight Readable
Display: Dual Line, 0.7″ & 0.4″ High, 5 & 7 Digits, Decimal, LCD
Serial Comms: None
Warranty: 3 years
Backlight: DC-Powered
Product Series: ProtEX
Product Family: PD6830
Product category: Explosion-Proof, Field Mounted Indicators
Product Application: Flow Rate Totalizer, Speed, Hazardous Area

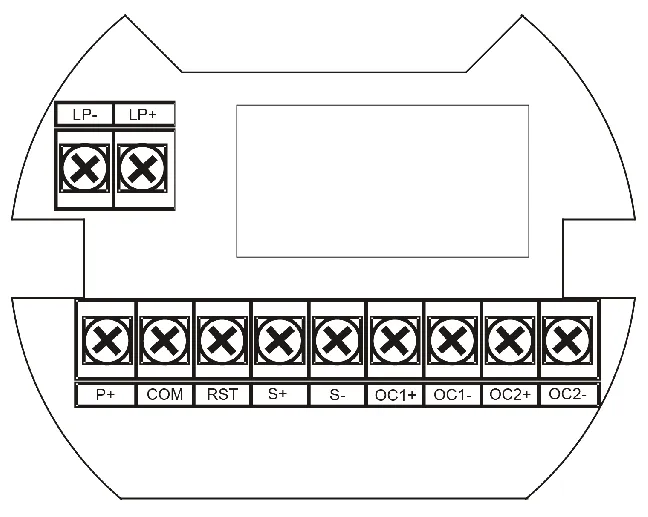

Wiring Diagram:
The ProtEX-RTP PD6830 is an explosion-proof flow rate/totalizer that can display flow rate and total from a pulse output flowmeter. Its display has a five digit upper line for rate, a seven alpha-numeric character lower line for total, and comes standard with a backlight. Like all ProtEX products, the PD6830 carries FM, CSA, ATEX, and IECEx approvals for use in hazardous areas. It can be powered from an included battery or a 24 VDC external power supply. Some features that really make the PD6830 flow rate/totalizer stand out are its automatic unit conversions from flowmeter k-factor units, ability to log up to 1024 data points, and SafeTouch® through-glass buttons. These buttons allow the PD6830 to be programmed and operated through the glass, thus eliminating the need to remove the cover in a hazardous area.
