Precision Digital PD6600 Loop-Powered Process Meter

Precision Digital PD6607-L2N


Available on backorder

Part Number: PD6607-L2N  Categories: ,

Email Us:
WhatsApp Us: +6016-551 9084

Model: PD6607-L2N
Product Type: 1/8 DIN Loop-Powered Digital Panel Meter
Input: Current (4-20 mA)
Output Options: (2) Open Collectors, (2) SS Relays
Approvals: ATEX (IS), CE, UL/C-UL, IEC (IS), UL/C-UL (IS, NI)
Display: Dual Line, 0.7″ & 0.4″ High, F & I and 8 Digits, LCD
Warranty: 3 years
Backlight: Standard / Red on Alarm
Product Series: Loop Leader
Product Family: PD6606

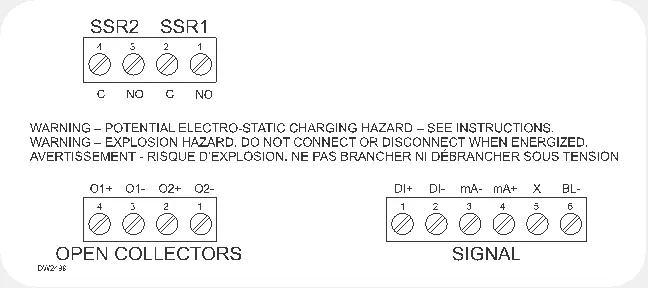

Wiring Diagram:


Except where noted all specifications apply to operation at +25°C.


Input: 4-20 mA
Accuracy: ±0.02% of span ±1 count, Square root and programmable exponent: 10-100% FS
Voltage Drop: Without Backlight: 1.5 V maximum,
With backlight: 4.7 V maximum
Equivalent Resistance: With backlight off: 75 Ω @ 20 mA
With backlight on: 225 Ω @ 20 mA
Input Overload: Over current protection to 1 A maximum
Temperature Drift: 25 PPM/°C from -40 to 75°C ambient
Function: PV1: Linear, square root, or programmable exponent PV2: Linear or Round Horizontal Tank
Low-Flow Cutoff: 0.0 to 999,999.9
HART Transparency: Analog input will not interfere with existing HART communications on the wired 4-20 mA signal


Display: Dual-line LCD with backlight. Both lines 14-segment alphanumeric. Top: 0.7″ (17.8 mm), Bottom: 0.4″ (10.2 mm). The display may be programmed to turn red and flash a user-defined message on an alarm condition.
Backlight: Powered by 4-20 mA loop. Intensity varies with signal level
PD6602 & PD6606:
Top line: 5 digits (-9999 to 99999) or 5 characters (all capital & most lower case letters)
Bottom line: 8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters (all capital & most lower case letters)
Bargraph: None
PD6603 & PD6607:
Top line: -99FT 11IN 15/16 to 999FT 11IN 15/16
Bottom line: 8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters (all capital & most lower case letters)
Bargraph: 20 segments, numeric percent indication at top
PD6604 & PD6608:
Top line: 5 digits (-9999 to 99999) or 5 characters (all capital & most lower case letters)
Bottom line: 8 digits (-9,999,999 to 99,999,999; separated by commas) or 8 characters (all capital & most lower case letters)
Bargraph: 20 segments, numeric percent indication at top
Decimal Point & Commas:
Top line: Up to four decimal places
Bottom line: Up to seven decimal places and commas to indicate 1000s (ie 88,987,628)
Dual-Scale Feature: The input can be displayed in different scales on the top and bottom lines. For instance, the top line could display the input in height and the bottom line could display that same input in volume.
Alarm Indication: Red backlight, flashing display, alarm symbol (!). Symbols are not available on bar graph skus.
Alarm Message: On or Off; user programmable, 8 characters maximum. Displayed every 10 seconds for 1 second on the bottom line.
Display Update Rate: Ambient > -10°C: 1 update/second
Ambient -20 C: 1 update/2 seconds
From -20°C to -40°C the update rate slows down 1 second for every -2°C (e.g. at -24°C, 1 update/4 seconds).
Overrange: Top: 99999; Bottom: 99,999,999 (flashing)
Underrange: Top: -9999; Bottom: -9,999,999 (flashing)


Environmental: Operating temperature range:
-40 to 75°C for safe area products
-40 to 70°C for hazardous area products
Storage temperature range: -40 to 85°C
Relative humidity: 0 to 90% non-condensing. Printed circuit boards are conformally coated.
Programming Method: Front panel & Free PC-based USB programming software
Enclosure & Materials: Enclosure: 1/8 DIN, IP65, NEMA 4X front panel, high impact plastic, NORYL® polyphenylene ether & polystyrene blend (PPE PS) resin, UL 94V-0, Color: gray, Gasket: silicone rubber, Faceplate: LEXAN® polycarbonate (PC) film, Buttons: silicone rubber
Noise Filter: Averages the input signal over a period of time between 1 and 16 seconds to dampen the effects of a noisy signal that causes a jumpy display.
Recalibration: Recalibration is recommended at least every 12 months.
Max/Min Display: Max/min readings reached by the process are stored until reset by the user or until power to the meter is turned off.
Tare: Zeros out display
Password: Programmable password restricts modification of programmed settings.
Non-Volatile Memory: All programmed settings are stored in nonvolatile memory for a minimum of ten years if power is lost.
Normal Mode Rejection: 64 dB at 50/60 Hz
Connections: Removable screw terminals accept 12 to 22 AWG wire.
DI Digital Input Contacts: 2.1 VDC on contact. Connect normally open contacts across DI+ and DI
DI Digital Input Logic Levels: Logic High: 2.4 to 30 VDC (max)
Logic Low: 0 to 0.9 VDC
Tightening Torque: Screw terminal connectors: 4.5 lb-in (0.5 Nm)
Mounting screws: 8.0 lb-in max. (0.9 Nm)
Overall Dimensions: 4.68″x 2.45″x 3.79″ (119 mm x 62 mm x 96 mm) (W x H x D)
Weight: 8.7 oz (247g) with the option board
Warranty: 3 years parts and labor

Common Open Collector & Relay (Alarm) Specifications

High or Low Alarm: User programmable for high or low alarm
Alarm Deadband: 0-100% FS, user programmable
On & Off Time Delay: 0 to 9,999 seconds
Fail-Safe Operation: Independent for each open collector and relay
Alarm Operation: Automatic, Automatic with manual override, Latching (manual reset anytime), Latching with reset after cleared (manual reset only after the alarm has cleared)
Alarm Indication: Red backlight, flashing display, alarm symbol (!); (symbols not available on bar graph skus)
Alarm Message: On or Off; User programmable, 8 characters maximum. Displayed every 10 seconds for 1 second on bottom line
Alarm Acknowledge: Front panel ACK button or external digital input resets output and screen indication
Auto Initialization: When power is applied to the meter, open collectors and relays will reflect the state of the input to the meter
Timer Output: One-shot or Continuous
Off Time Delay: 1 sec to 99:59:59 (hrs:min:sec)
On Time: 1 sec to 99:59:59 (hrs:min:sec)
Stopwatch: Output turns on when started and off when stopped

Open Collector Outputs

Rating: Two NPN, Isolated open collector, 30 VDC @ 150 mA max
Output Assignment: Pulse, Alarm, Timer, Stopwatch on/off, or Disable
Pulse Output Source: PV (PV1, PV2) or Test Frequency
Pulse Output Factor: 0.000001 to 999,999.9
Pulse Width: 0.5 ms @ 1 kHz; 500 ms @ 1 Hz; 50% duty cycle
Pulse Output Frequency: 1,000 Hz maximum
Quadrature Pulse Output: Available for Output 2 (90° behind Output 1)
Alarm Output Source: Assign to PV (PV1, PV2) or Digital Input

Solid State Relays

Rating: Resistive Load: 250 VAC/DC @ 1 A
Inductive Load: 75 VA @ 0.6 A, 250 VAC/DC max (Safe Area only)
Noise Suppression: Metal oxide varistors across outputs
Relay Assignment: Pump Alternation, Alarm, Timer, Stopwatch on/off, or Disable
Alarm Output Source: Assign to PV (PV1, PV2) or Digital Input
Pump Alternation: Relays will alternate with each pump cycle and alternation can be based on elapsed time. Pump alternation time can be programmed for 0 to 999:59 (hrs:min)
Relay (Pump) Runtime: Meter will keep track of how long each relay (pump) has operated and display this information
Relay (Pump) Cycles: Meter will keep track of how many times the relays (pumps) have cycled and displayed this information

4-20 mA Transmitter Output

Accuracy: ±0.05% FS ±0.001mA
Output Source: PV1, PV2, re-transmit; reverse scaling allowed
Scaling Range: 1.00 to 23.0 mA
Disable: High impedance state, less than 1 mA
Calibration: Factory calibrated 4.00 to 20.00 mA
Underrange: 1.0 mA, 3.5 mA, or 3.8 mA (If input < 3.5 mA), or Off; user selectable
Overrange: 20.5 mA, 20.8 mA, or 23.0 mA (If input > 20.5 mA), or Off; user selectable
Isolation: 500 V input-to-output
Temperature Drift: 0.5 μA/°C max from -40 to 75°C ambient
External Loop Power Supply: 7.0 VDC to 30.0 VDC maximum
Output Loop Resistance: 10-750 Ω @ 24 VDC; 100-1100 Ω @ 30 VDC

Hazardous Area Approvals

ATEX: II 1G, Ex ia IIC T4 Ga, Ta = -40°C to +70°C
    Certificate number: CML 17ATEX2015X
IECEx: Ex ia IIC T4 Ga, Tamb = -40°C to +70°C
    Certificate number: IECEx CML 17.0008X
UL & C-UL Listed as Intrinsically Safe and Nonincendive:
    Class I, Division 1, Groups A, B, C and D T4,
    Class I, Division 2, Groups A, B, C, and D T4
    Ex ia IIC T4 (Canada); Class I Zone 0, Zone 1
    AEx ia IIC T4 (U.S.)
    Class I Zone 2, Group IIC T4 (U.S.)
UL & C-UL 61010 Listed for Electrical Safety and Type 4X Environmental:
    Standards for Safety:
    IEC 61010-1:2010 (3rd Edition);
    UL 61010-1, 3rd Edition;
    CAN/CSA-C22.2 No. 61010-1-12, 3rd Edition;
    Additional Standards:
    UL 50E

Free Meterview XL PC-Based Programming Software

PD6622/6 Loop-Powered Rate/TotalizerPD6624/8 Loop-Powered Rate/Totalizer with Bargraph
The main screen displays an image of the connected meter and includes various information about this meter, such as sku number, readings, and status.

Free, PC-based, MeterView XL software that connects to the meter via a micro USB cable is available for programming and setup of the meters. This software greatly simplifies the programming process and also allows the user to save configuration files for later use. The meter will also be powered by the USB connection so no additional power is needed during programming.

  • Free
  • Easiest Way to Program Your Loop Leader
  • Convenient USB Connection
  • Meter Powered by USB Connection During Programming
  • Save & Print Configuration Files without Meter Connected
  • Micro USB Cable Provided

Mounting Dimensions


  1. Panel cutout required: 1.772″ x 3.622″ (45mm x 92mm)
  2. Panel thickness: 0.040 – 0.250″ (1.0mm – 6.4mm)
  3. Mounting brackets lock in place for easy mounting
  4. Clearance: Allow 6″ (152 mm) behind the panel


Pump Control

Loop Leaders, when ordered with the two solid state relays, have several features that make them ideal for simple duplex pump control. The relays can be programmed to alternate the pumps based on level and runtime thus ensuring even wear on both pumps. If the level remains constant (within on/off points), alternation is based on runtime. If the level cycles the on/off points, alternation is based on level and runtime. If the run time is set to 0, alternation is based on level. The meter also keeps track of runtime for both pumps and the number of times they have cycled.

In addition to the two solid state relays for controlling pumps, the Loop Leaders two open collectors could be used to indicate high or low level alarm conditions.

Pump Alternation

The Loop Leader can be used as a pump controller to alternate two pumps and provide high and low level alarm indication. The pumps can be programmed to alternate on level and run time and the meter can display the pump run times and the number of times they have cycled. The PD6606–L2N can be used as an intrinsically safe pump controller.

Loop Leader Pump Alternation

Signal Input Conditioning

The PD6600 Loop Leader process meter allows you to select the signal input conditioner applied to the input: linear, square root, programmable exponent, or round horizontal tank volume calculation.

Loop Leader Open Channel Flow
The programmable exponent function is used to linearize the level signal in open channel flow applications using weirs and flumes and display flow rate in engineering units.
The square root function can be used to linearize the signal from a differential pressure transmitter and display flow rate in engineering units.
The round horizontal tank linearization function automatically calculates the volume in a round horizontal tank with flat ends.

Digital Input

A digital input comes standard on the Loop Leader PD6600 Series. This allows the user to program an external button to activate certain functions immediately like alarm acknowledgment, display minimum/maximum values, tare the display, reset value, and many more. This allows the Loop Leader to be greatly customized for use in specialized applications. See the PD6600 series manuals for all digital input functions.

Timer Function

Application Timers are used in everyday life; one of the most common examples is the microwave oven. Industrial timers are used in process control applications where certain events or actions need to be controlled by time. Examples include automatic and batch control applications, where the relay needs to be energized for a specific length of time.

The timer fuction is available on the open collector and relay outputs; which means that you can have up to four timers per meter. The start and stop actions can be triggered from the setup menu or by the function keys and digital input. The meter can be setup to display the off/on timer count down.

There are two modes of operation:

  1. Continuous Timer (Interval)
    At the start of the timer the output is off and turns on after the Off Delay elapses. The output remains on for the duration of the On Time. The cycle repeats until the user stops the timer either from the menu or a function key.
  2. One-Shot Timer
    At the start of the timer the output is off and turns on after the Off Delay elapses. The output remains on for the duration of the On Time. The timer stops and the cycle does not repeat.
  1. A sensor detects the bottle is in place and triggers the digital input to start the timer
  2. The timer output controls the filling pump
  3. The On Time is set according to the time needed to fill the bottle

Data Sheet: LDS6602_0 Datasheets

Instruction Manual:LIM6602_0 Instruction Manuals

Quick Start Manual
