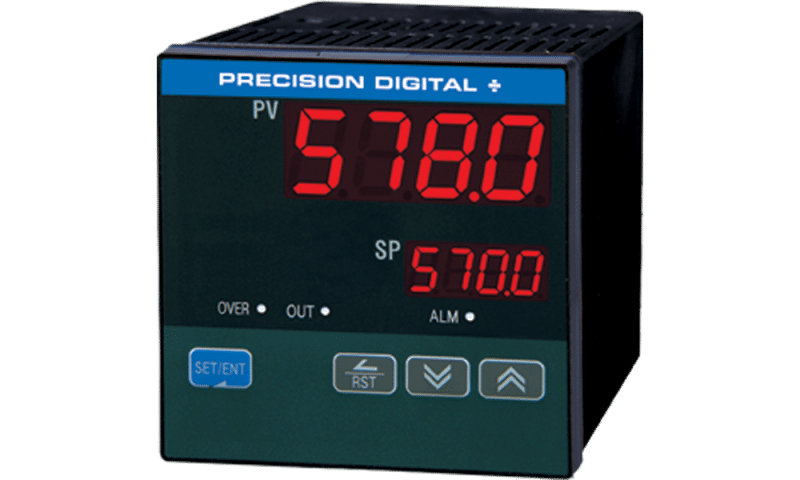

Precision Digital PD570-6RA-10


Part Number: PD570-6RA-10 Category:

Email Us:

Model: PD570-6RA-10
Product Type: Limit Controller
Input: Current (4-20 mA), Voltage (0-10 V), Thermocouple, RTD
Output Options: (2) Relays, (1) 4-20 mA
Power: 100-240 VAC
Approvals: CE, C-UL Recognized
Display Category: LED, Dual Line
Display: Dual Line, 4 Digits, Red LED
DIN Size: 1/16 DIN
Serial Comms: None
Warranty: 3 years
Product Series: Nova
Product Family: PD570
Product category: Digital Panel Meters
Product Application: Temperature, Process

Display: Dual 4 digits, red LED, -1999 to 9999

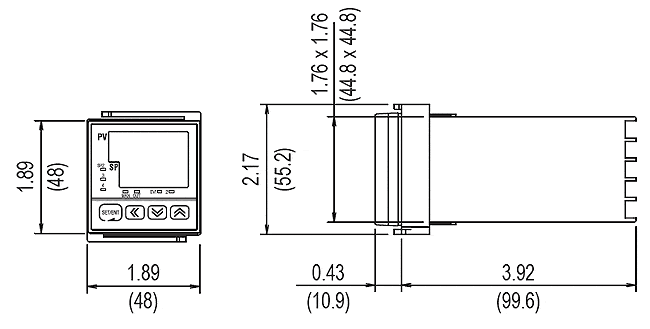

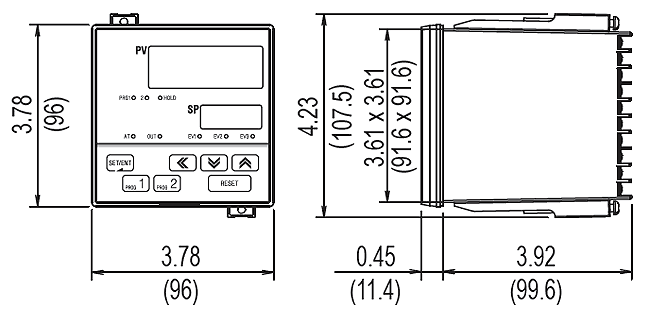

Inch (mm)
SP Display
Inch (mm)
oz (g)
1/160.45 (11.3)0.37 (9.5)7.0 (198)
1/40.81 (20.5)0.43 (11.0)13.9 (394)

Front Panel: Panel gasket provided.
1/16 DIN: IP65
1/4 DIN: IP55
Programming Methods: Four front panel buttons and Modbus
Noise Filter: Programmable 1 to 120 seconds, or off
Display Update Rate: 4/second
Max/Min Display: Stored until reset by user or meter is turned off.
Password: Restricts modification of programmed settings.
Non-Volatile Memory: Settings stored for a minimum of 10 years
Power: 100-240 VAC, 50/60 Hz, 10 W
Required Fuse: UL Recognized, 1 A, 250 V, slow-blow
Isolation: 2300 V input/output-to-power line; 4 kV relay output-to-input/output/power line.
Operating Temperature: 10 to 50°C
Storage Temperature: -40 to 85°C
Relative Humidity: 20 to 90% non-condensing
Enclosure: 1/8 & 1/4 DIN available; impact-resistant plastic; color: black
UL File Number: E244207; Process Control Equipment
Approvals: UL & C-UL Recognized, CE Compliant
Warranty: 3 years parts & labor

Temperature Inputs

Inputs: Factory calibrated, field selectable: J, K, T, E, B, R, S, L, U, N, W, and Platinel II thermocouples and 100 Ω platinum RTD (0.00385 or 0.00392 curve)
Cold Junction Reference: Automatic or off
Offset Adjustment: Four programmable input bias zones
Sensor Break: Up or down scale, user selectable; display reads S.OPN; alarm relays will follow the up or down scale selection.

TypeRange (°C)Range (°F)Accuracy
K1-200 to 1370-300 to 2500>0ºC: ±0.1% FS ±1 count
<0ºC: ±0.2% FS ±1 count
K2-199.9 to 999.90 to 2300
J-199.9 to 999.9-300 to 2300
T-199.9 to 400.0-300 to 750
E-199.9 to 999.9-300 to 1800
B0 to 180032 to 3300>400ºC: ±0.15% FS ±1 count
<400ºC: ±5% FS ±1 count
R0 to 170032 to 3100±0.15% FS ±1 count
S0 to 170032 to 3100
L-199.9 to 900.0-300 to 1600>0ºC: ±0.1% FS ±1 count
<0ºC: ±0.2% FS ±1 count
U-199.9 to 400.0-300 to 750
N-200 to 1300-300 to 2400>0ºC: ±0.1% FS ±1 count
<0ºC: ±0.25% FS ±1 count
W0 to 230032 to 4200±0.2% FS ±1 count
Platinel II0 to 139032 to 2500±0.1% FS ±1 count
PtA-199.9 to 850.0-300 to 1560±0.1% FS ±1 count
PtB-199.9 to 500.0-199.9 to 999.9
PtC-19.99 to 99.99-4.0 to 212.0±0.2% FS ±1 count
JPtA-199.9 to 500.0-199.9 to 999.9±0.1% FS ±1 count
JPtB-150.0 to 150.0-199.9 to 300

* Performance within recommended operating conditions (10 to 50 ºC, 20 to 90% RH)

Process Inputs

Inputs: Field selectable: 0.4 to 2.0 V, 1 to 5 V, 0 to 10 V, -10 to 20 mV, 0 to 100 mV. 4-20 mA input requires 100Ω resistor connected across input terminals (order P/N: PDX-RES1).
Accuracy: ±0.1% FS ±1 count
Decimal Point: Up to 3 decimals: 9.999, 99.99, 999.9, or 9999
Calibration: All inputs are calibrated at the factory
Scale Range: User programmable over entire range
Transmitter Supply: 14 to 18 VDC @ 20 mA; available instead of retransmitting analog output; selection is made through the front panel.

Limit Control Relay and Indicators

Ratings: Latching, 1 Form C (SPDT); rated 3 A @ 30 VDC or 3 A @ 250 VAC resistive load
Relay Operation: User may select high or low limit operation, forward or reverse (fail-safe) mode.
Reverse Operation (Fail-Safe): Programmable; relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.
Forward Operation: Relay coil is energized in alarm condition. In case of power failure, relay will go to non-alarm state.
Hysteresis: 0-10% FS, user selectable; manual reset allowed after condition has been corrected.
Out LED: Relay status indicator. LED is on when relay is de-energized (during over limit conditions in reverse operation).
Over Limit LED: Over LED is on when system is in over limit condition. LED will go off once system returns to normal condition.
Over Limit Timer Display: Time stored since last occurrence of over limit condition or until controller is turned off.

Alarm Relays

Ratings: 1 Form A (SPST); rated 1 A @ 30 VDC or 1 A @ 250 VAC resistive load
High/Low Alarm: User may program alarm for absolute value, high or low operation, forward or reverse (fail-safe) mode.
Deviation Alarm: User may program relay for high, low, or high/low range deviation alarm, forward or reverse (fail-safe) mode.
Alarm Deadband: 0-100% FS, user selectable
Alarm Delay: 0 to 99 minutes and 59 seconds
Reverse Operation (Fail-Safe): Programmable; relay coil is energized in non-alarm condition. In case of power failure, relay will go to alarm state.
Forward Operation: Relay coil is energized in alarm condition. In case of power failure, relay will go to non-alarm state.
Auto Alarm Initialization: Normal and standby operation. Normal alarm will reflect the state of the input to the controller at all times. Standby alarm will not trigger if the change to alarm state is a result of power up cycle, set point change, or alarm configuration change.

4-20 mA Retransmitting Output

Scaling Range: 4-20 mA output can be scaled for any display
Accuracy: ±0.1% FS
Power: Internally powered 4-20 mA output
Isolation: 500 V input-to-output
Output Loop Resistance: 600 Ω max

Serial Communications

Compatibility: EIA-485
Protocol: PC, Modbus (ASCII, RTU)
Address: 1 to 99 (Max 31 units connected)
Baud Rate: 600 to 19,200 bps
Data: 7 or 8 bit, automatic when using Modbus protocol
Transmit Time Delay: 0 to 100 ms
Stop Bit: 1 or 2
Parity: None, even, or odd

Nova Multi-Monitoring PC Software

Any Nova Controller with the serial communications option can be configured to interface with the Nova Multi-Monitoring PC software. Up to 30 controllers can be monitored and operated, and each can use independent data logging.

  • Easy to Set Up and Use
  • Connect up to 30 Nova Controllers
  • View PV, SP, and Alarm Status Simultaneously
  • Control Set Points
  • Log, View, and Save Data in Spreadsheet Files


System Requirements: Windows® 9598ME2000XPVista7
Communications: An RS-232 to RS-485 or USB to RS-485 converter may be used for communication with a PC and Nova Multi-Monitoring Software.
Number of Units: Up to 30 Nova Controllers
Baud Rate: 9,600 to 19,200 bps
Data Logging: Graph and save data as .hdr format. Each controller saves graphs independently. Data exportable in spreadsheet format.
Logging Interval: 1 second to 24 hours

Simultaneous Monitoring

Simultaneously monitor up to 30 Nova Controllers and view the PV, SP, and alarm status for all connected controllers. The main view screen also displays the basic sku numbers of all connected units. Any series
of Nova Controllers with the serial communications option may be monitored with this software.

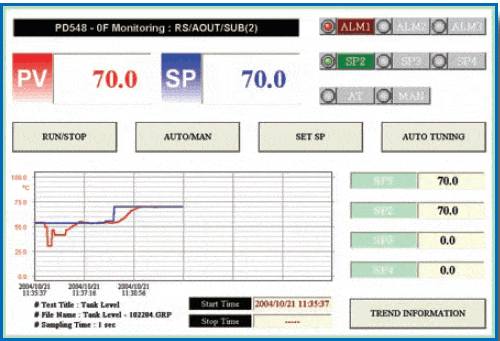

Simultaneously View Up to 30 Nova Controllers

Remotely Control Set Points

Program each of the 4 set points through a detailed operation screen available for every connected controller. In addition, control outputs can be set to run or stop, auto tuning enabled, and automatic or manual control established.

Monitor and Control Common Parameters

Data Acquisition

PV and SP data can be logged independently for each unit. This data can be graphed using the Data Viewer for quick and clear analysis. Logged data can be exported into spreadsheet format.

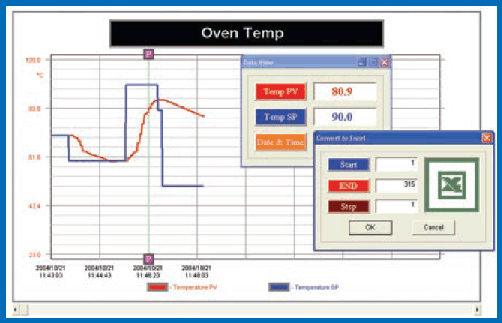

View Logged Data Graphs and Export Data

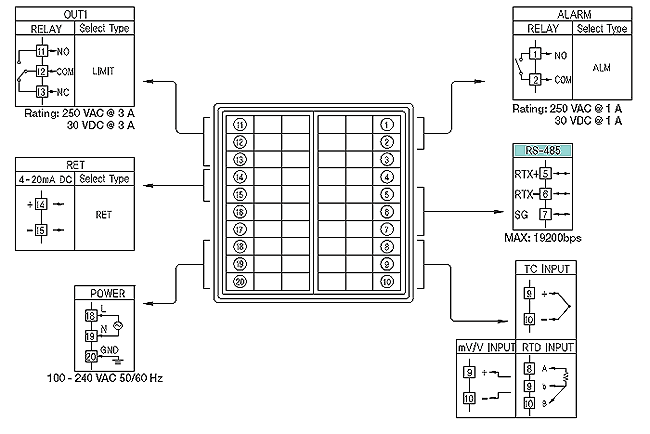

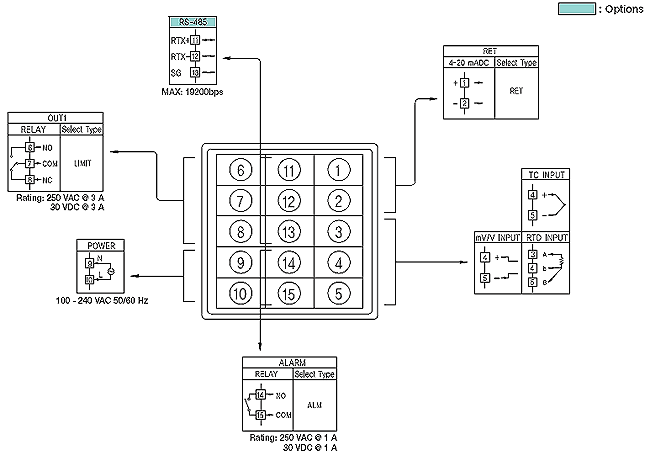

PD570 Connections

PD578 Connections

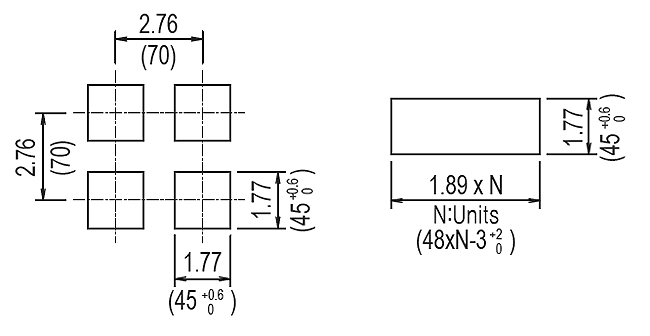

PD570 Cut Outs

1/16 DIN (48 x48)

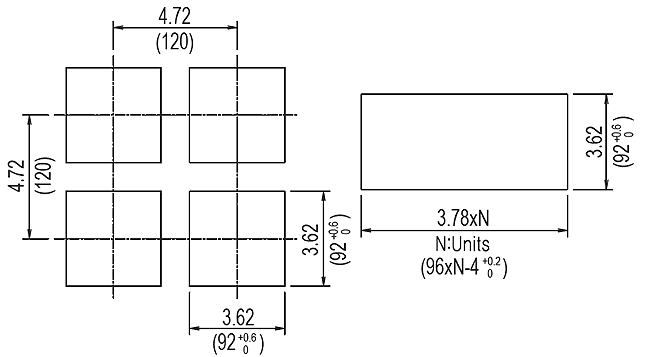

PD578 Cut Outs

1/4 DIN (96 x 96)


Data Sheet:LDS570_1 Data Sheet

Instruction Manual:  LIM570_1 Instruction Manuals

Quick Start Manual:
