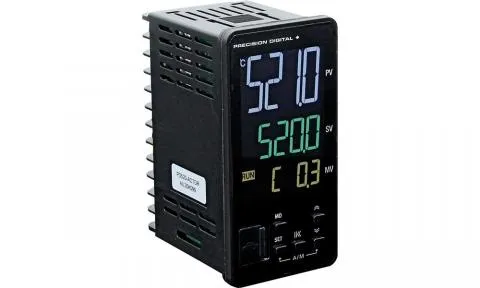

Product Type: Auto-Tune PID Controller
Inputs: Current (4-20 mA), Voltage (0-10 V), Thermocouple, RTD
Outputs: (1) Control Voltage Pulse (SSR), (1) H&C Cooling Cooling Control Relay, (2) Alarm Relays
Power: 100-240 VAC
Display: Three Lines, 4 Digits, White, Green, & Amber Reverse Polarity LCD
Serial Communications: None
DIN Size: 1/8 DIN (Vertical)
Digital Inputs: None
Approvals: UL/C-UL Recognized, CE
Warranty: 1 year
PD500 SuperNova PID Process & Temperature Controllers
